How a $30,000 “savings” became a $120,000 rebuild—and what every engineer should know about long strand glass fiber before committing to tooling. Glass fiber warpage injection molding
The part came out of the mold twisted like a potato chip.
Not slightly warped. Not dimensionally challenged. Twisted. Thirty to sixty millimeters off nominal in the worst areas on a three-foot-long substrate that had to fit precisely into a vehicle assembly.
We had welding fixtures waiting for accurate samples. Punch dies ready to be set up. Assembly jigs designed around parts that would actually be straight.
Instead, we had expensive, twisted plastic that wouldn’t fit anywhere near where it needed to be.
And we knew exactly why—because someone had ignored what the mold flow analysis told us.
The Material That Demands Respect – Glass fiber warpage injection molding
The part specification called for SABIC STAMAX 30YK270: polypropylene with 30% long strand glass fiber. The glass fibers measured 14mm long—substantial reinforcement that creates a material with incredible strength-to-weight ratio and excellent impact resistance.
It’s also a material with a personality. A challenging, unforgiving personality.
Long strand glass-filled polypropylene exhibits bilateral shrinkage—meaning it shrinks differently across the grain than with the grain. The material data sheets from SABIC spelled this out clearly. The specific gravity of 1.12 g/cc and the shrink characteristics were well documented.
This wasn’t unknown science. This was predictable material behavior that we needed to design around.
The customer specified this material, and it was non-negotiable. We asked about shorter fiber length. The answer was no. The material properties they needed required the 14mm long strand glass.
So we had to make it work.
The $30,000 Decision
The mold flow analysis came back with a clear recommendation: seven injection nozzles positioned to create a mesh-type layout of glass fiber orientation.
Seven nozzles meant more complexity in the hot runner system. More drop points to balance. More initial tooling cost.
The tool maker looked at the analysis and said they could do it with four nozzles. Straight down the center line of the part. Sequential wave flow injection would be easy to manage. Clean. Simple.
And $30,000 cheaper.
The customer—who was driving the tool design at the time and had deep experience in manufacturing—made the call. Four nozzles. Save the money.
The mold flow analysis said this was a mistake. But “back in the day,” mold flow wasn’t always reliable. It was used as a reference, not gospel. And everyone had experience to draw on.
The decision was made. The tool was built.
When Experience Meets Material Reality
The first parts off the tool confirmed what the mold flow had predicted.
Severe warpage. The potato chip twist. Parts that deviated 30-60mm from nominal geometry in the worst areas. Nothing consistent in the deformation pattern—just chaos across the part geometry.
We were three months from launch. The clay design was frozen. Mating components had already been tooled. There was very little we could do in the part design itself.
So we did what engineers do when facing a crisis: we tried to process our way out of a design problem.
We spent a month running design of experiments trials. Adjusting injection speeds. Modifying temperatures. Changing hold times and pressures. Running every variable we could control in the molding process.
We got the warpage down to 12mm in some areas. Good enough to set up secondary tooling if we held the parts in place during fixture setup. Difficult to work with, but it allowed us to accomplish the tasks required and keep other tooling development moving forward.
But 12mm was nowhere near acceptable for production. These parts still wouldn’t fit in the vehicle.
Going Back to What the Analysis Told Us
We returned to the mold flow analysis with fresh eyes and compared it against our trial data. The answer had been there from the beginning.
The four-nozzle layout created long flow paths where the material established laminar flow. When glass-filled material flows in a laminar pattern, the fibers align with the flow direction. This creates the exact condition that causes bilateral shrinkage—different material properties in different directions.
The seven-nozzle layout the mold flow had recommended wasn’t just about filling the part. It was about creating conflicting flow fronts everywhere possible. Preventing long runs of flow. Forcing the glass fibers into a mesh pattern rather than aligned orientation.
Think of it like plywood versus plain lumber. Plywood’s cross-grain construction makes it dimensionally stable. Aligned grain moves with moisture and temperature. The same principle applies to glass fiber orientation in injection molded parts.
The seven-nozzle pattern was more complicated to describe and harder to balance in the hot runner system. It wasn’t a simple straight-line sequential fill. It required strategic placement to establish flow front collisions that disrupted fiber alignment.
But that complexity was the point. We needed to prevent the material from doing what it naturally wanted to do—flow smoothly and align the fibers.
The Real Cost of Savings
Three months to identify the solution through trials and mold flow comparison.
Two months to build a new mold with the correct seven-nozzle configuration.
$120,000 for the new tooling.
The $30,000 “savings” had cost us four times that amount, plus five months of development time, plus the cost of setting up secondary tooling with warped parts, plus the stress of approaching a launch date with a fundamental problem.
The customer listened to the data when we presented it. They had deep knowledge and recognized what had gone wrong. The new mold was approved.
When the corrected tool came online with seven properly positioned nozzles, the warpage dropped to 5mm. Within acceptable tolerance. Parts fit. Assembly proceeded. Production launched.
Final shrink rate analysis: 0.00425 inches per inch—predictable, manageable, and consistent across the part geometry.
The Tool Maker That No Longer Exists
The tool maker who insisted four nozzles would work? They later went out of business.
We had a long list of problems with their mold designs across many tools. This wasn’t an isolated incident—it was a pattern of cutting corners that caught up with them.
The customer had chosen them strictly on price. Sometimes the cheapest option costs the most.
Front-Loading: What Should Have Happened
If we had properly front-loaded the glass fiber considerations at the design review stage, here’s what would have been different:
1. Respect the Mold Flow Analysis
“Back in the day” mold flow wasn’t always accurate. Today it is. The simulation tools have matured enormously. When mold flow analysis tells you something about glass-filled materials and fiber orientation, listen.
But don’t abandon human judgment. Keep experienced engineers in the loop. The right approach is analysis AND experience, not analysis OR experience.
2. Understand Material Behavior Before Committing to Design
SABIC STAMAX 30YK270 with 30% long strand glass has well-documented shrinkage characteristics. The bilateral shrinkage behavior wasn’t a surprise—it was in the material data sheets.
Before freezing the design, ask:
- What are the shrinkage characteristics of this material?
- How does fiber orientation affect dimensional stability?
- What does the material supplier recommend for gate placement?
- Have we seen this material perform in similar geometries?
3. Use as Many Nozzles as Practical to Create Mesh Alignment
More drop points aren’t just about filling the part—they’re about controlling fiber orientation. The goal is preventing laminar flow where fibers align in long, continuous paths.
Strategic nozzle placement creates conflicting flow fronts. Shorter flow paths. Cross-grain fiber patterns that behave more like plywood than aligned lumber.
Yes, it costs more upfront in hot runner complexity. But it prevents the $120,000 rebuild later.
4. Don’t Let Material Flow Establish Long Runs
Ribs can interfere with laminar flow patterns. Flow restrictions can force turbulence. Gate locations can create intentional flow front collisions.
These design features that disrupt smooth flow aren’t defects—they’re intentional strategies to prevent fiber alignment and the warpage that comes with it.
5. Factor Geometry Complexity Into Gate Strategy
Our four-nozzle layout ignored the part geometry and just ran straight down the center line. Sequential filling was easy to manage, but it created exactly the wrong fiber orientation.
The geometry of the part should drive the gate strategy, not the other way around. Complex three-dimensional shapes require complex filling strategies.
6. Build Contingency Into Launch Timelines for Glass-Filled Materials
If you’re working with long strand glass fiber materials, especially in large, complex parts, assume there will be learning required. Don’t freeze downstream tooling until you’ve validated dimensional stability from production tooling.

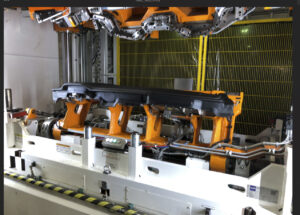

We had to set up welding fixtures, punch dies, and assembly jigs using warped parts. It worked, barely, but it created problems throughout the entire launch.
7. Question “Savings” That Override Analysis
When someone proposes saving money by deviating from what the engineering analysis recommends, ask what problem that creates downstream.
A $30,000 savings in tooling cost that creates a $120,000 rebuild isn’t a savings—it’s expensive learning.
The Broader Lesson: Trust the Process, Then Verify
There’s a tension in engineering between trusting analysis and trusting experience.
Early mold flow analysis wasn’t always reliable, so experienced engineers learned to treat it skeptically. But the tools have evolved. The simulation accuracy has improved dramatically.
Today’s mold flow analysis, particularly for well-characterized materials like glass-filled polypropylene, is remarkably accurate.
The lesson isn’t to blindly trust software over human judgment. The lesson is to take the analysis seriously, especially when it warns about fiber orientation effects in glass-filled materials.
If the analysis says you need seven nozzles and someone wants to use four to save money, that’s not a trivial optimization—that’s ignoring material science.
Questions Every Design Review Should Ask About Glass-Filled Materials
Before you commit to tooling for glass-filled injection molded parts:
Material Questions:
- What is the fiber length and content percentage?
- What are the documented shrinkage characteristics, particularly bilateral shrinkage?
- Has this material performed successfully in similar geometries?
- What does the material supplier recommend for processing?
Mold Flow Questions:
- Where does the analysis recommend gate locations and why?
- What fiber orientation patterns does it predict with the proposed gate strategy?
- Are there areas of predicted high fiber alignment that could cause warpage?
- What happens if we reduce the number of gates for cost savings?
Design Questions:
- Can we incorporate ribs or features that disrupt laminar flow?
- Is the part geometry compatible with creating mesh fiber orientation?
- Do we have sufficient gates to prevent long flow paths?
- Have we designed in the predicted shrinkage correctly?
Launch Questions:
- Are we validating dimensions from production tooling before freezing downstream tooling?
- Do we have contingency in the timeline for fiber orientation learning?
- What’s our backup plan if warpage exceeds predictions?
The Tool That Should Have Been Built First
The seven-nozzle tool that cost $120,000 to build as a replacement should have been the original tool.
The mold flow analysis told us that from the beginning. The material data sheets supported it. The engineering analysis was there.
What was missing was the willingness to trust the analysis over the appeal of $30,000 in upfront savings.
Front-loading means doing the harder, more expensive thing at the design stage to prevent the much harder, much more expensive problems at launch.
It means respecting what material science tells us about glass fiber behavior.
It means not confusing “cost reduction” with “cost avoidance.”
And it means understanding that with challenging materials like long strand glass-filled polypropylene, the mold flow analysis isn’t just a reference—it’s telling you exactly what will happen if you ignore it.
What glass-filled material challenges are you facing in your product development? The time to address fiber orientation and warpage is at the design review stage, not after the first parts come out twisted. Launchpad Project Management helps manufacturers implement front-loaded design thinking that prevents expensive problems before tooling is cut.
